Wide sleeper – maximum service life thanks to reduced vibration

The high weight and large contact area of a sleeper increases track stability and reduces maintenance requirements. The RAILONE wide sleeper takes this concept to the extreme. A sleeper with a width of under 60 cm and a weight of almost 600 kg was developed. This means that the traffic loads are distributed in the best possible way in the ballast bed without any interruption in the sleeper compartment. The experience gained from over 25 years of operation is clearly noticeable and shows extended tamping cycles, even on tracks with very unfavorable subgrade conditions.

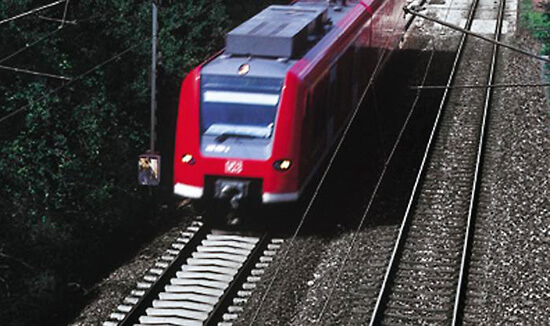

Wide sleeper installed in railway line

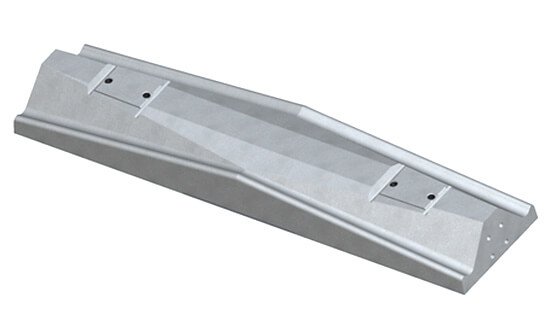

Detailed view of wide sleeper

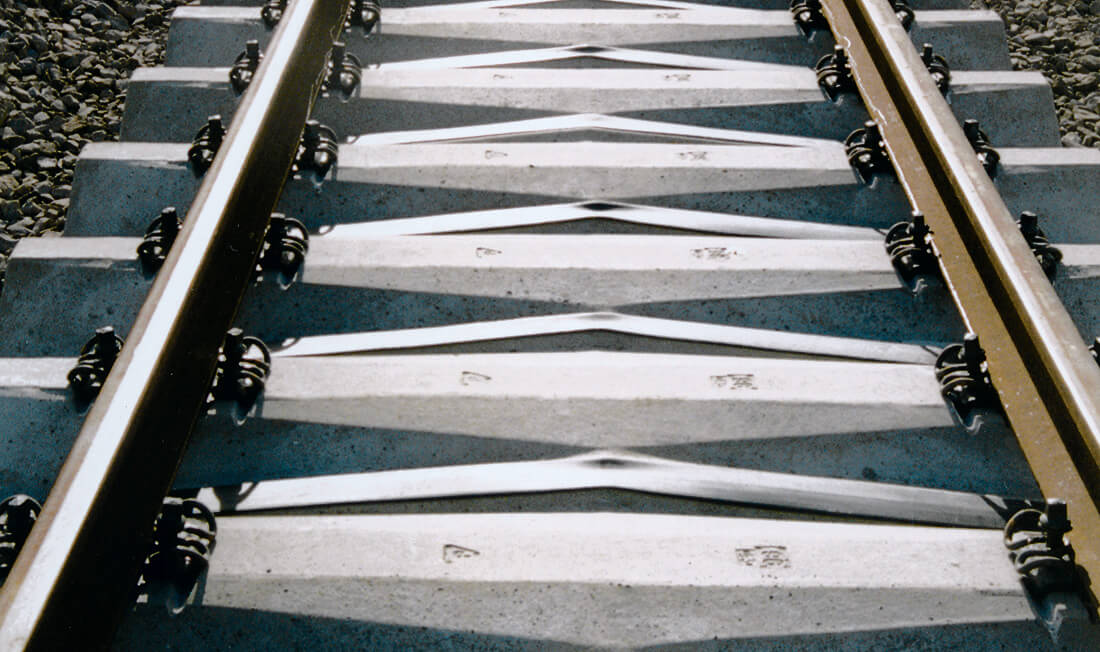

Detailed view of wide sleeper

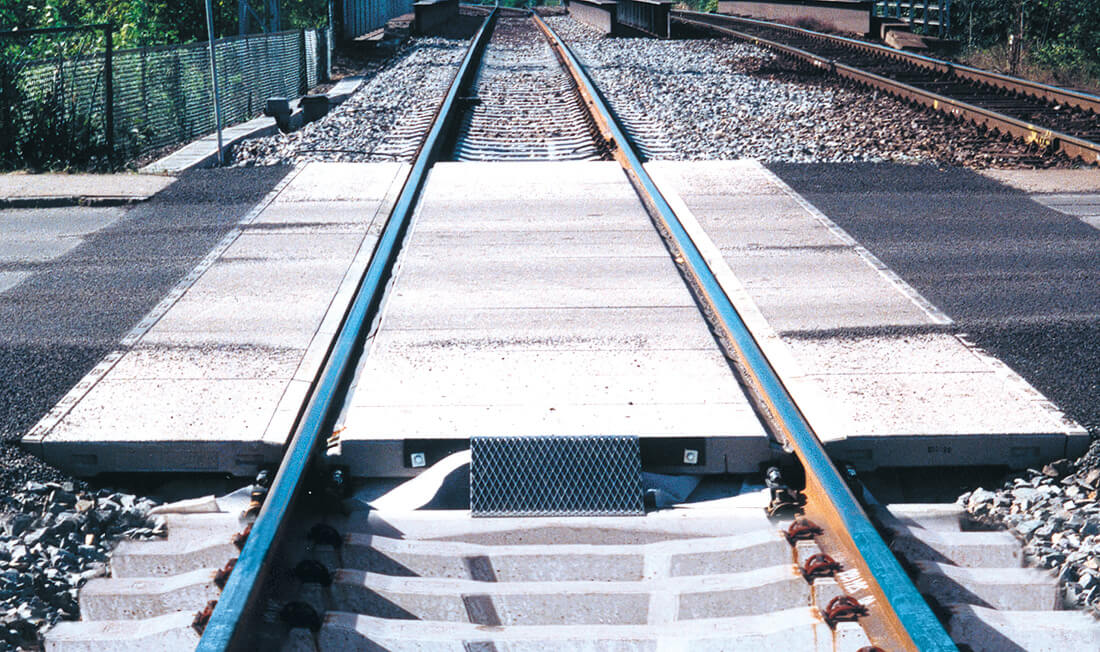

Wide sleeper with level crossing
Downloads

Properties:

  • Suitable for regional, long-distance and freight traffic
  • Tested for axle loads up to 22.5 t and speeds up to 160 km/h
  • Track alignment and tamping work possible with modified maintenance technology
  • Lower structure height possible due to reduced ballast height
  • Use of highly elastic rail fastening for even better load distribution or noise protection possible
  • Use of sleeper pads specially adapted to the site possible

How you benefit:
